Step 10 - Deploy App Protect via CI/CD pipelineΒΆ

In this module, we will install NGINX Plus and App Protect packages on CentOS with a CI/CD toolchain. NGINX teams created Ansible modules to deploy it easily in a few seconds.

Note

The official Ansible NAP role is available here https://github.com/nginxinc/ansible-role-nginx-app-protect and the NGINX Plus role here https://github.com/nginxinc/ansible-role-nginx

Uninstall the previous running NAP

  1. SSH from Jumpbox commandline ssh centos@10.1.1.10 to the App Protect in CentOS

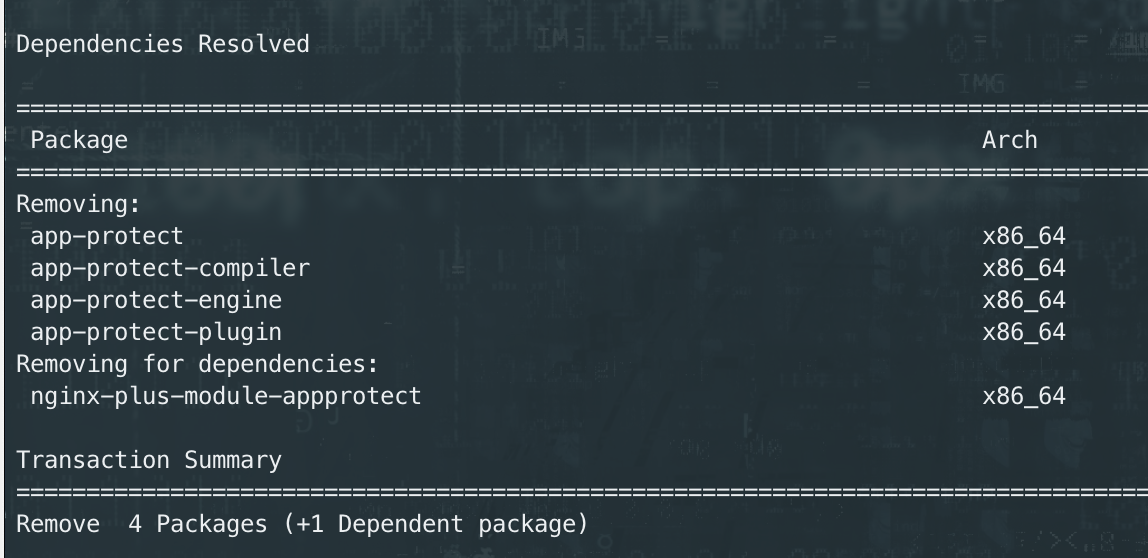

  2. Uninstall NAP in order to start from scratch

    sudo yum remove -y app-protect*
    ../../_images/yum-remove-app-protect.png

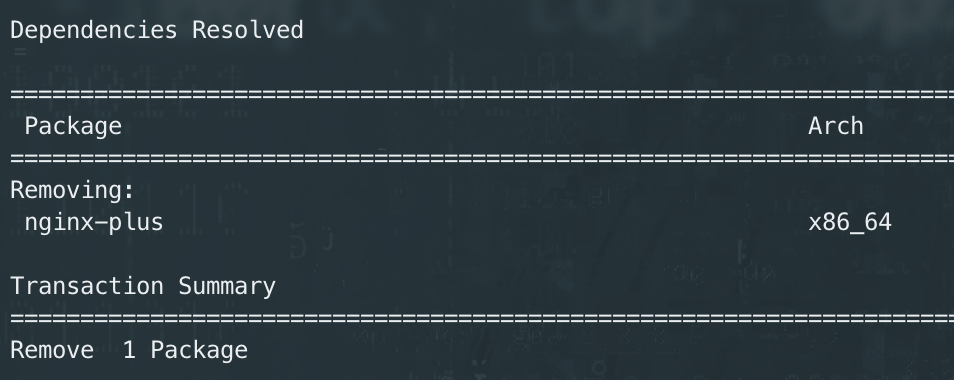

  3. Uninstall NGINX Plus packages

    sudo yum remove -y nginx-plus*
    ../../_images/yum-remove-nginx-plus.png

  4. Delete/rename the directories from the existing deployment

    sudo rm -rf /etc/nginx
sudo rm -rf /var/log/nginx

Run the CI/CD pipeline from Jenkins

Steps:

  1. RDP to the Jumphost with credentials user:user

  2. Open Edge Browser and open Gitlab (if not already opened)

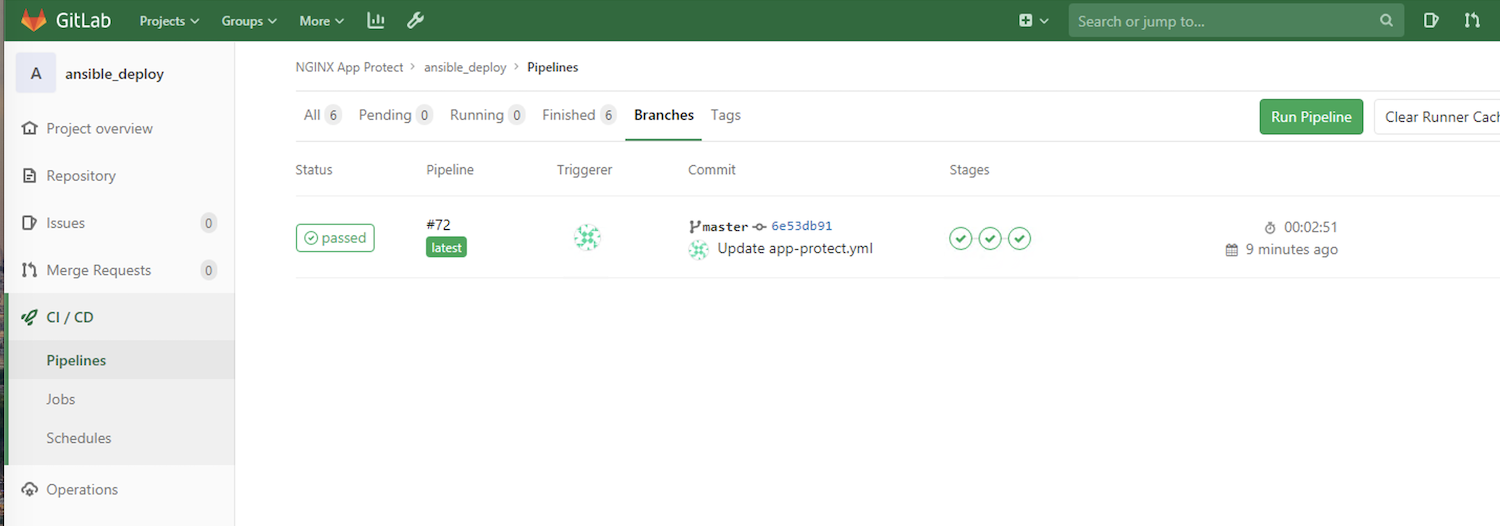

  3. Select the repository nap-deploy-centos and go to CI /CD

../../_images/gitlab_pipeline.png

The pipeline is as below:

stages:
    - Requirements
    - Deploy_nap
    - Workaround_dns

Requirements:
    stage: Requirements
    script:
        - ansible-galaxy install -r requirements.yml --force

Deploy_nap:
    stage: Deploy_nap
    script:
        - ansible-playbook -i hosts app-protect.yml

Workaround_dns:
    stage: Workaround_dns
    script:
        - ansible-playbook -i hosts copy-nginx-conf.yml

Note

As you can notice, the Requirements stage installs the requirements. We use the parameter --force in order to be sure we download and install the latest version of the module.

Note

This pipeline executes 2 Ansible playbooks.

  1. One playbook to install NAP (Nginx Plus included)

  2. The last playbook is just there to fix an issue in UDF for the DNS resolver

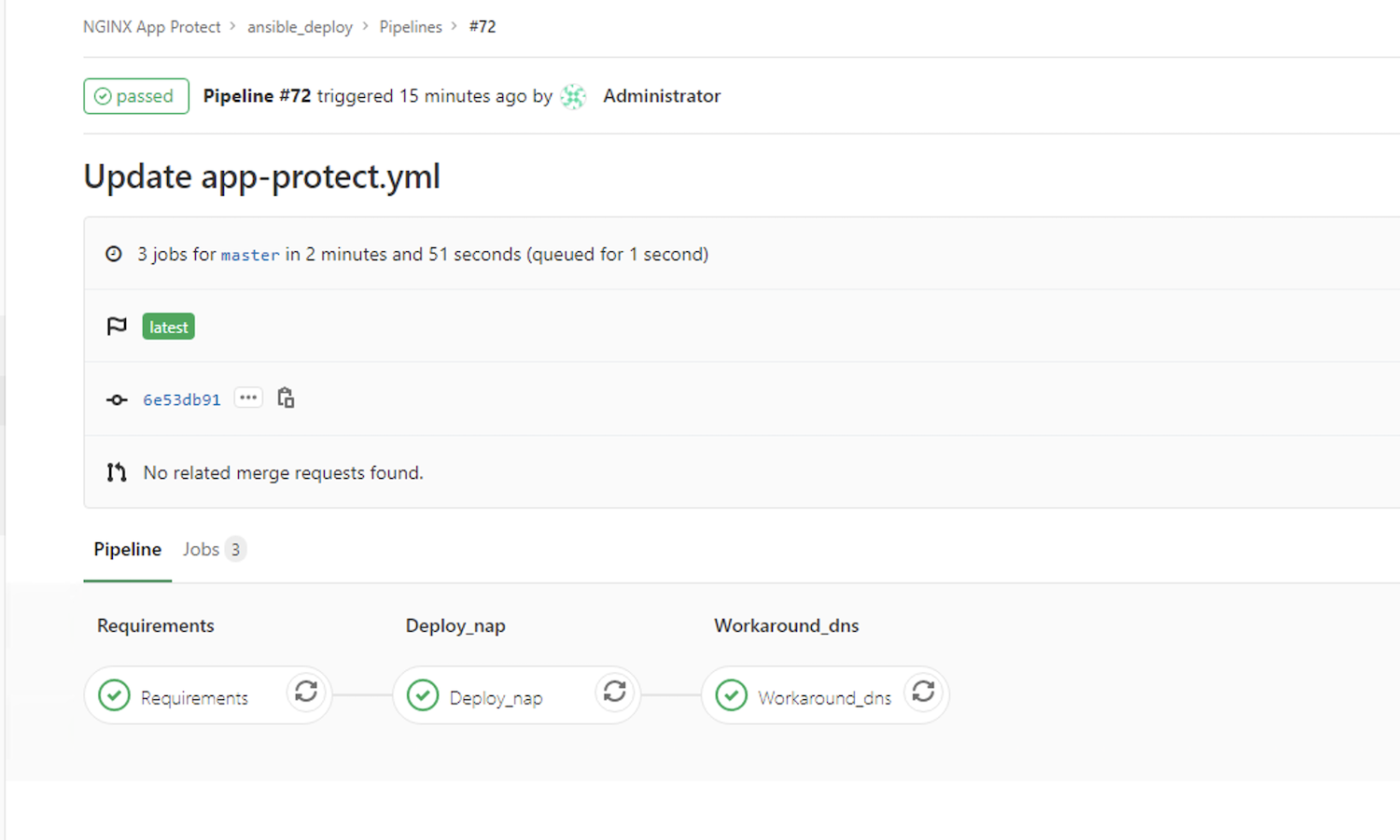

../../_images/gitlab_pipeline_ok.png

When the pipeline is finished executing, perform a browser test within Edge Browser using the Arcadia NAP CentOS bookmark

Note

Congrats, you deployed NGINX Plus and NAP with a CI/CD pipeline. You can check the pipelines in GitLab if you are interested to see what has been coded behind the scenes. But it is straight forward as the Ansible modules are provided by F5/NGINX.
