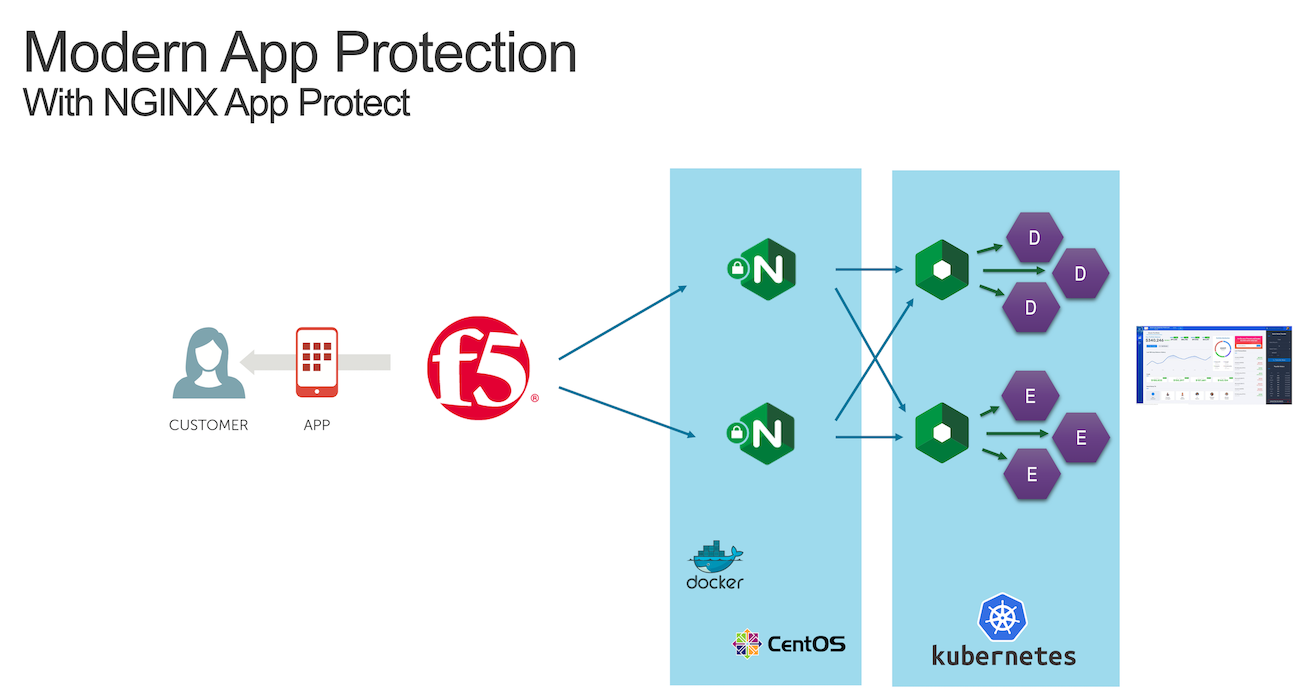

Step 11 - Deploy a new version of the NGINX Plus Ingress Controller¶

As a reminder, in Class 1 - Step 2 - Publish Arcadia App with a NGINX Plus Ingress Controller we deployed a NGINX Plus instance as an Ingress Controller in our Kubernetes cluster.

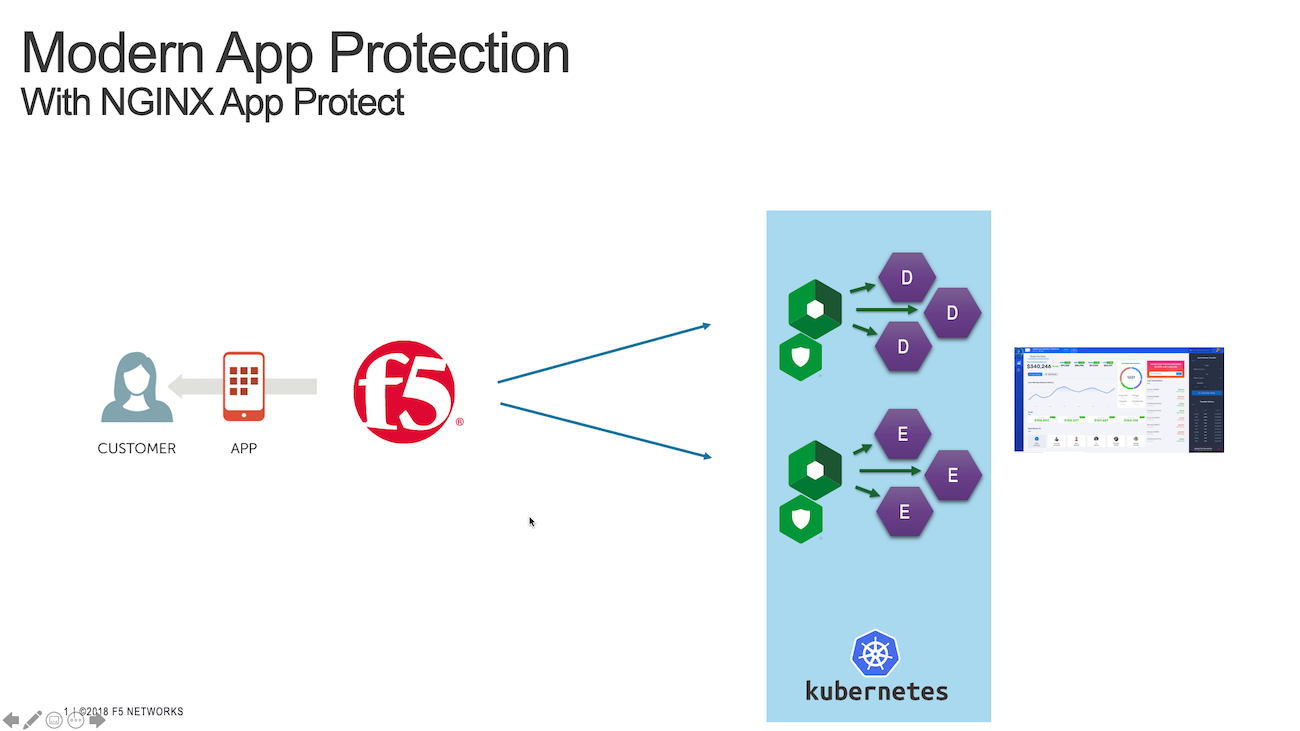

Now, with NAP v1.3, we can deploy this NGINX Plus instance with the NAP module enabled.

To do so, we will:

1. Deploy a new version of the Pod (NGINX r23 + NAP v1.10)

2. Deploy a new Ingress configuration template (with NAP configuration files)

Test Attack before NAP on ingress added

1. Open Edge Browser

2. Click on Arcadia k8s bookmark

3. Now, you are connecting to Arcadia App from a new KIC with NAP enabled

4. Send an attack (like a XSS in the address bar) by appending ?a=<script>

Steps

1. SSH from Jumpbox commandline ssh ubuntu@10.1.1.8 (or WebSSH and cd /home/ubuntu/) to CICD Server

2. Run this command in order to delete the previous KIC kubectl delete -f /home/ubuntu/k8s_ingress/full_ingress_arcadia.yaml

3. Run this command in order to pull and install NGINX KIC from NGINX Repo

   helm install nginx-ingress nginx-stable/nginx-ingress  \
   --namespace nginx-ingress  \
   --set controller.kind=deployment \
   --set controller.replicaCount=2 \
   --set controller.nginxplus=true \
   --set controller.appprotect.enable=true \
   --set controller.image.repository=registry.gitlab.com/mattdierick/nginxpluskic-nap \
   --set controller.image.tag=1.10.0 \
   --set controller.service.type=NodePort \
   --set controller.service.httpPort.nodePort=30274 \
   --set controller.service.httpsPort.nodePort=30275 \
   --set controller.serviceAccount.imagePullSecretName=gitlab-token-auth \
   --set controller.ingressClass=ingressclass1


   Note

   This command uses HELM in order to download all the required config files from Nginx repo (CRD …). What’s more, you can notice, it downloads the Ingress image (the NGINX Plus image with NAP) from a private repo in Gitlab.com

4. At this moment, the Ingress pod is up and running. But it is empty, there is no configuration (ingress, nap policy, logs).

5. Rune this commands in order to create the NAP policy, the log profile and the ingress object (the object routing the traffic to the right service)

   kubectl apply -f /home/ubuntu/k8s_ingress/deploy_policy_and_logs.yaml
   kubectl apply -f /home/ubuntu/k8s_ingress/ingress_arcadia_nap.yaml


   Note

   This 2 commands will create the WAF policy and the log profile for Arcadia App, and will create the Ingress resource (the config to route the traffic to the right services/pods)

6. Open Kubernetes Dashboard bookmark in Edge Browser

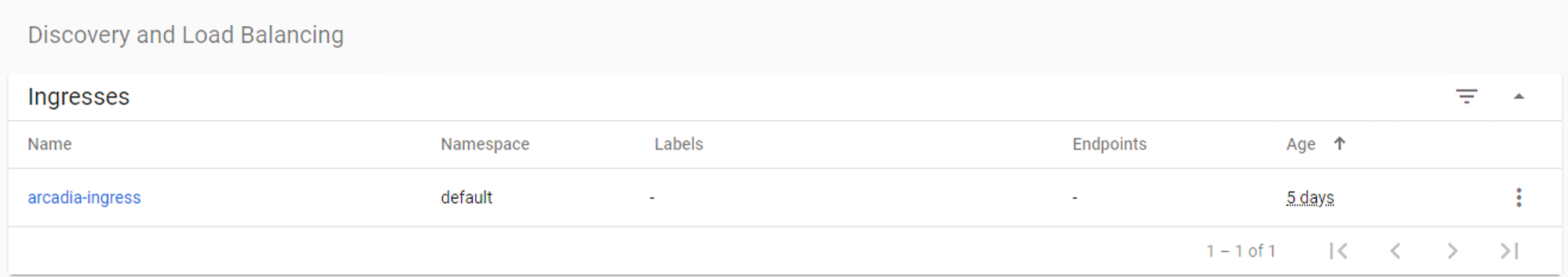

7. Scroll down on the left to Discovery and Load Balancing and click on Ingresses

8. Check the Ingress arcadia-ingress (in the default namespace) by clicking on the 3 dots on the right and edit

9. Scroll down and check the specs

As you can notice, we added few lines in our Ingress declaration. To do so, I followed the guide (https://docs.nginx.com/nginx-ingress-controller/app-protect/installation/)

1. I added NAP specifications (from the guide)

2. I added NAP annotations for Arcadia app (see below)

---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: arcadia-ingress
annotations:
    appprotect.f5.com/app-protect-policy: "default/dataguard-blocking"
    appprotect.f5.com/app-protect-enable: "True"
    appprotect.f5.com/app-protect-security-log-enable: "True"
    appprotect.f5.com/app-protect-security-log: "default/logconf"
    appprotect.f5.com/app-protect-security-log-destination: "syslog:server=10.1.20.11:5144"

spec:
rules:
- host: k8s.arcadia-finance.io
    http:
    paths:
    - path: /
        backend:
        serviceName: main
        servicePort: 80
    - path: /files
        backend:
        serviceName: backend
        servicePort: 80
    - path: /api
        backend:
        serviceName: app2
        servicePort: 80
    - path: /app3
        backend:
        serviceName: app3
        servicePort: 80

Please a make a new test by clicking on Arcadia k8s Edge Browser bookmark.

1. Open Edge Browser

2. Click on Arcadia k8s bookmark

3. Now, you are connecting to Arcadia App from a new KIC with NAP enabled

4. Send an attack (like a XSS in the address bar) by appending ?a=<script>

5. Attack is blocked

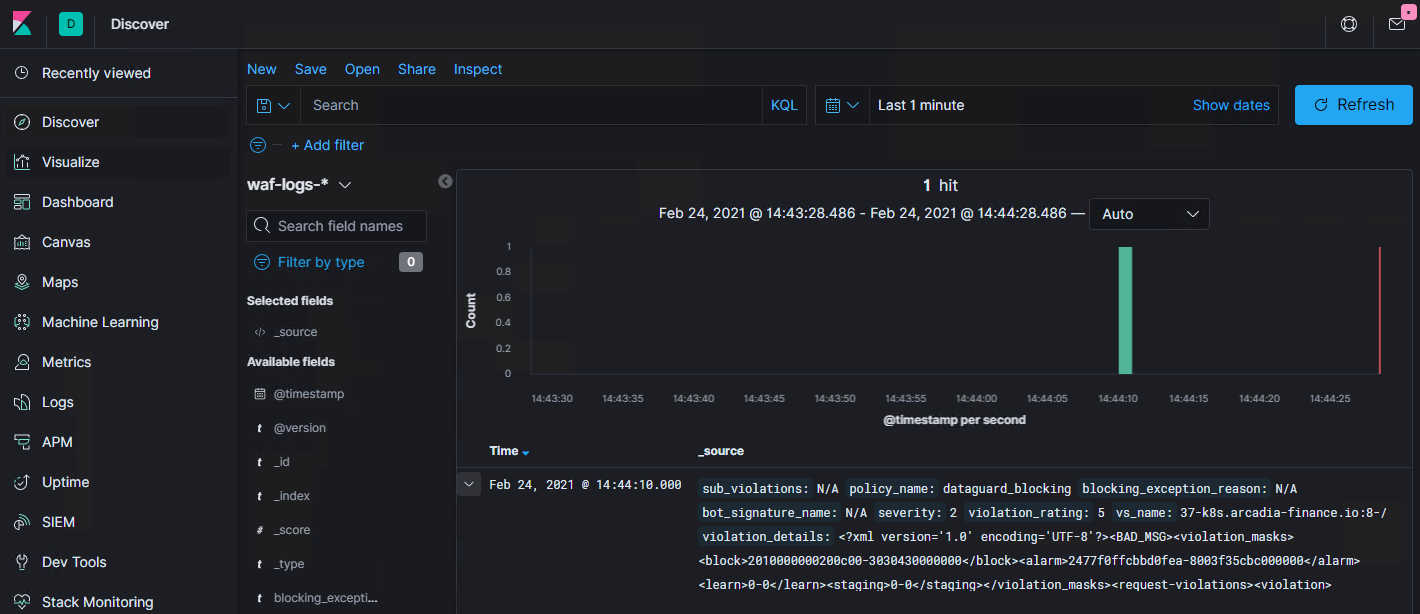

6. Open Kibana bookmark and click on Discover to find the log

helm uninstall nginx-ingress -n nginx-ingress
kubectl apply -f /home/ubuntu/k8s_ingress/deploy_policy_and_logs.yaml
kubectl apply -f /home/ubuntu/k8s_ingress/ingress_arcadia_nap.yaml
