Architecture of Arcadia ApplicationΒΆ

Note

This application is available in GitLab in case you want to build your own lab :

First of all, it is important to understand how Arcadia app is split between micro-services

This is what Arcadia App looks like when the 4 microservices are up and running, and you can see how traffic is routed based on URI

../../_images/arcadia-api.png

But you can deploy Arcadia Step by Step

If you deploy only Main App and Back End services.

../../_images/MainApp.png

Note

You can see App2 (Money Transfer) and App3 (Refer Friend) are not available. There is dynamic content showing a WARNING instead of a 404 or blank frame.


If you deploy Main App, Back End and Money Tranfer services.

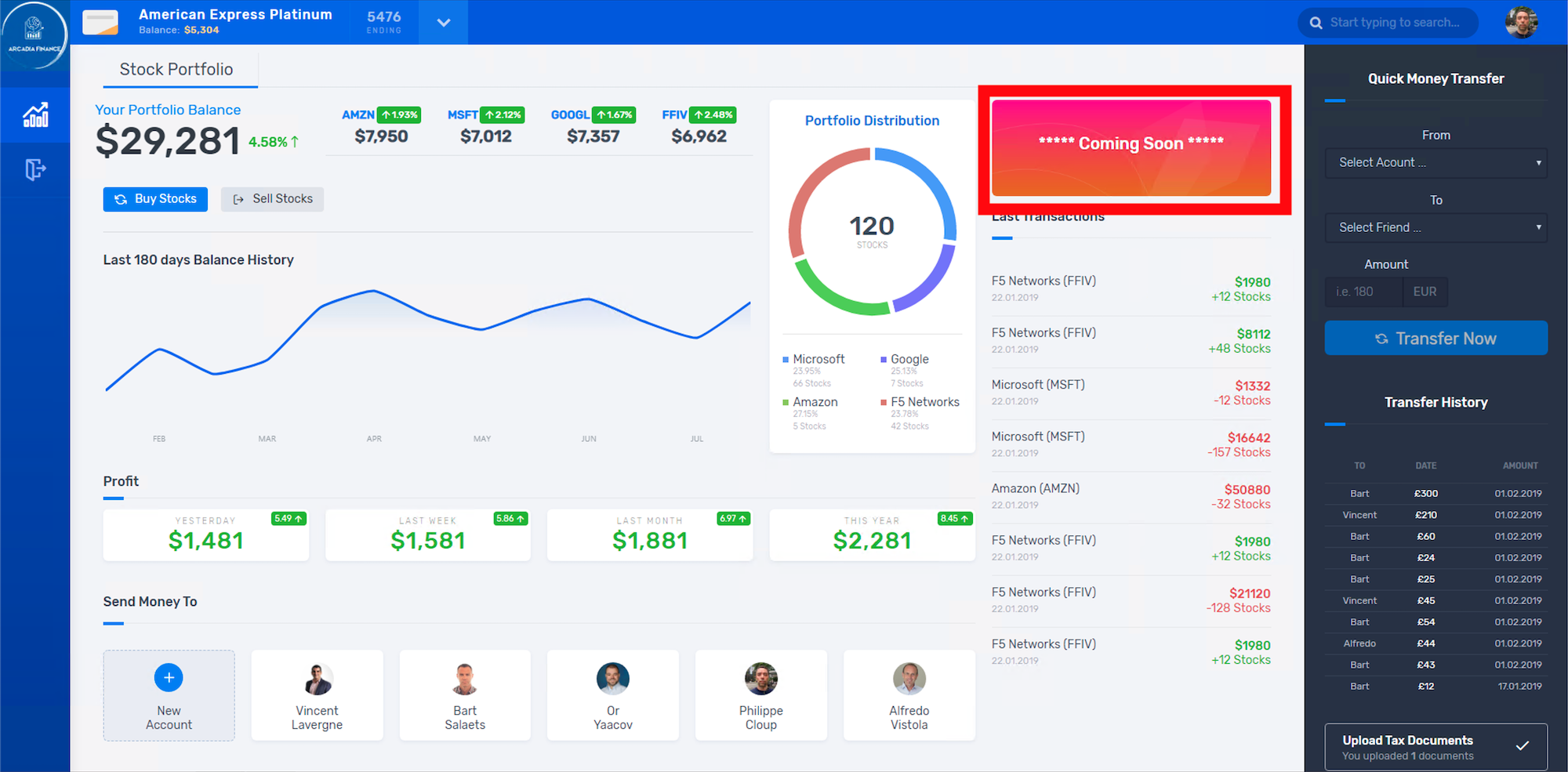

../../_images/app2.png

If you deploy Main App, Back End, Money Tranfer and Refer Friend services.

../../_images/app3.png
