Step 3 - Build your first NAP (NGINX App Protect) Docker image

In this module, we will build manually our first NAP Docker image via command line.

Follow the step below to build the Docker image:

  1. SSH (or WebSSH and cd /home/ubuntu/) to Docker App Protect + Docker repo VM

  2. Run the command docker build -t app-protect:nosig . <– Be careful, there is a “.” (dot) at the end of the command

  3. Wait until you see the message: Successfully tagged app-protect:nosig

Note

This command execute the Dockerfile below

#For CentOS 7
FROM centos:7.4.1708

# Download certificate and key from the customer portal (https://cs.nginx.com)
# and copy to the build context
COPY nginx-repo.crt nginx-repo.key /etc/ssl/nginx/

# Install prerequisite packages
RUN yum -y install wget ca-certificates epel-release

# Add NGINX Plus repo to yum
RUN wget -P /etc/yum.repos.d https://cs.nginx.com/static/files/nginx-plus-7.repo

# Install NGINX App Protect
RUN yum -y install app-protect \
   && yum clean all \
   && rm -rf /var/cache/yum \
   && rm -rf /etc/ssl/nginx

# Forward request logs to Docker log collector
#RUN ln -sf /dev/stdout /var/log/nginx/access.log \
#    && ln -sf /dev/stderr /var/log/nginx/error.log

# Copy configuration files
COPY nginx.conf log-default.json /etc/nginx/
COPY entrypoint.sh  ./

CMD ["sh", "/entrypoint.sh"]

When Docker image is built :

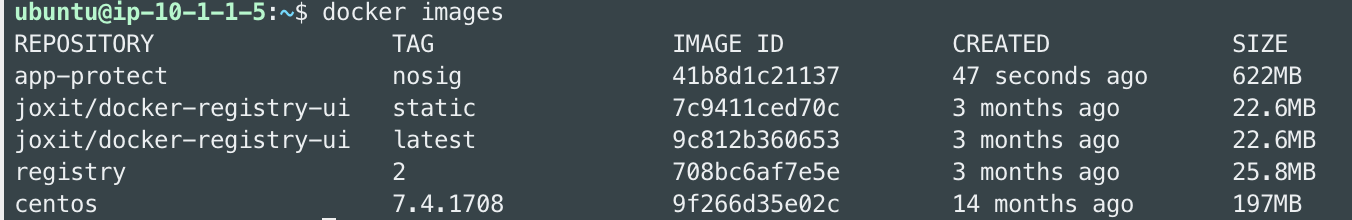

  1. Check if the app-protect Docker image is available locally by running docker images

../../_images/docker_images.png

  1. Run a container with this image docker run -dit --name app-protect -p 80:80 -v /home/ubuntu/nginx.conf:/etc/nginx/nginx.conf app-protect:nosig

  2. Check that the Docker container is running docker ps

../../_images/docker_run.png

  1. Check the signature package date included in this image (by default) docker exec -it app-protect more /var/log/nginx/error.log

2020/05/19 16:59:29 [notice] 12#12: APP_PROTECT { "event": "configuration_load_success", "attack_signatures_package":{"revision_datetime":"2019-07-16T12:21:31Z"},"completed_successfully":true}

It’s time to test your lab

  1. In Chrome, click on the bookmark Arcadia NAP Docker

  2. Navigate in the app, and try some attacks like injections or XSS - I let you find the attacks :)

  3. You will be blocked and see the default Blocking page

The requested URL was rejected. Please consult with your administrator.

Your support ID is: 14609283746114744748

[Go Back]

Note

Did you notice the blocking page is similar to ASM and Adv. WAF ?

Video of this module (force HD 1080p in the video settings)

Warning

You can notice some differences between the video and the lab. When I did the video, the dockerfile was different. But the concept remains the same.
