Step 7 - Customize the WAF policy

So far, we have been using the default NGINX App Protect policy. As you notices in the previous lab (Step 5), the nginx.conf does not file any reference to a WAF policy. It uses the default WAF policy.

In this lab, we will customize the policy and push a new config file to the docker container.

Use a custom WAF policy and assign it per location

Steps:

  1. SSH to the Docker App Protect + Docker repo VM

  2. In the /home/ubuntu directory, create a new folder policy-adv

    mkdir policy-adv

  3. Create a new policy file named policy_base.json and paste the content below

    vi ./policy-adv/policy_base.json

    {
    "name": "policy_name",
    "template": { "name": "POLICY_TEMPLATE_NGINX_BASE" },
    "applicationLanguage": "utf-8",
    "enforcementMode": "blocking"
}

  4. Create another policy file named policy_mongo_linux_JSON.json and paste the content below

    vi ./policy-adv/policy_mongo_linux_JSON.json

    {
    "policy":{
    "name":"evasions_enabled",
    "template":{
        "name":"POLICY_TEMPLATE_NGINX_BASE"
    },
    "applicationLanguage":"utf-8",
    "enforcementMode":"blocking",
    "blocking-settings":{
        "violations":[
            {
                "name":"VIOL_JSON_FORMAT",
                "alarm":true,
                "block":true
            },
            {
                "name":"VIOL_EVASION",
                "alarm":true,
                "block":true
            },
            {
                "name": "VIOL_ATTACK_SIGNATURE",
                "alarm": true,
                "block": true
            }
        ],
        "evasions":[
            {
                "description":"Bad unescape",
                "enabled":true,
                "learn":false
            },
            {
                "description":"Directory traversals",
                "enabled":true,
                "learn":false
            },
            {
                "description":"Bare byte decoding",
                "enabled":true,
                "learn":false
            },
            {
                "description":"Apache whitespace",
                "enabled":true,
                "learn":false
            },
            {
                "description":"Multiple decoding",
                "enabled":true,
                "learn":false,
                "maxDecodingPasses":2
            },
            {
                "description":"IIS Unicode codepoints",
                "enabled":true,
                "learn":false
            },
            {
                "description":"IIS backslashes",
                "enabled":true,
                "learn":false
            },
            {
                "description":"%u decoding",
                "enabled":true,
                "learn":false
            }
        ]
    },
    "json-profiles":[
            {
                "defenseAttributes":{
                    "maximumTotalLengthOfJSONData":"any",
                    "maximumArrayLength":"any",
                    "maximumStructureDepth":"any",
                    "maximumValueLength":"any",
                    "tolerateJSONParsingWarnings":true
                },
                "name":"Default",
                "handleJsonValuesAsParameters":false,
                "validationFiles":[

                ],
                "description":"Default JSON Profile"
            }
        ],
    "signature-settings": {
            "attackSignatureFalsePositiveMode": "disabled",
            "minimumAccuracyForAutoAddedSignatures": "low"
    },
    "server-technologies": [
            {
                "serverTechnologyName": "MongoDB"
            },
            {
                "serverTechnologyName": "Unix/Linux"
            },
                        {
                "serverTechnologyName": "PHP"
            }
    ]
    }
}

    Note

    you can notice the difference between the base and the advanced policy.

  5. Now, create a new nginx.conf in the policy-adv folder. Do not overwrite the existing /etc/nginx/nginx.conf file, we need it for the next labs.

    vi ./policy-adv/nginx.conf

    user nginx;

worker_processes 1;
load_module modules/ngx_http_app_protect_module.so;

error_log /var/log/nginx/error.log debug;

events {
    worker_connections  1024;
}

http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;
    sendfile        on;
    keepalive_timeout  65;

    server {
        listen       80;
        server_name  localhost;
        proxy_http_version 1.1;

        app_protect_enable on;
        app_protect_security_log_enable on;
        app_protect_security_log "/etc/nginx/log-default.json" syslog:server=10.1.20.6:5144;

        location / {
            resolver 10.1.1.9;
            resolver_timeout 5s;
            client_max_body_size 0;
            default_type text/html;
            app_protect_policy_file "/etc/nginx/policy/policy_base.json";
            proxy_pass http://k8s.arcadia-finance.io:30274$request_uri;
        }
        location /files {
            resolver 10.1.1.9;
            resolver_timeout 5s;
            client_max_body_size 0;
            default_type text/html;
            app_protect_policy_file "/etc/nginx/policy/policy_mongo_linux_JSON.json";
            proxy_pass http://k8s.arcadia-finance.io:30274$request_uri;
        }
        location /api {
            resolver 10.1.1.9;
            resolver_timeout 5s;
            client_max_body_size 0;
            default_type text/html;
            app_protect_policy_file "/etc/nginx/policy/policy_mongo_linux_JSON.json";
            proxy_pass http://k8s.arcadia-finance.io:30274$request_uri;
        }
        location /app3 {
            resolver 10.1.1.9;
            resolver_timeout 5s;
            client_max_body_size 0;
            default_type text/html;
            app_protect_policy_file "/etc/nginx/policy/policy_mongo_linux_JSON.json";
            proxy_pass http://k8s.arcadia-finance.io:30274$request_uri;
        }

    }
}

  6. Last step is to run a new container (and delete the previous one) referring to these 3 files.

    docker rm -f app-protect
docker run -dit --name app-protect -p 80:80 -v /home/ubuntu/policy-adv/nginx.conf:/etc/nginx/nginx.conf -v /home/ubuntu/policy-adv/policy_base.json:/etc/nginx/policy/policy_base.json -v /home/ubuntu/policy-adv/policy_mongo_linux_JSON.json:/etc/nginx/policy/policy_mongo_linux_JSON.json  app-protect:20200316

  7. Check that the app-protect:20200316 container is running

    docker ps
    ../../_images/docker-ps.png

  8. RDP to the Jumhost as user:user and click on bookmark Arcadia NAP Docker

    ../../_images/arcadia-adv.png

Note

From this point on, NAP is using a different WAF policy based on the requested URI:

  1. policy_base for / (the main app)

  2. policy_mongo_linux_JSON for /files (the back end)

  3. policy_mongo_linux_JSON for /api (the Money Transfer service)

  4. policy_mongo_linux_JSON for /app3 (the Refer Friend service)


Use External References to make your policy dynamic

External references in policy are defined as any code blocks that can be used as part of the policy without being explicitly pasted within the policy file. This means that you can have a set of pre-defined configurations for parts of the policy, and you can incorporate them as part of the policy by simply referencing them. This would save a lot of overhead having to concentrate everything into a single policy file.

A perfect use case for external references is when you wish to build a dynamic policy that depends on moving parts. You can have code create and populate specific files with the configuration relevant to your policy, and then compile the policy to include the latest version of these files, ensuring that your policy is always up-to-date when it comes to a constantly changing environment.

Note

To use the external references capability, in the policy file the direct property is replaced by “xxxReference” property, where xxx defines the replacement text for the property. For example, “modifications” section is replaced by “modificationsReference”.

In this lab, we will create a custom blocking page and host this page in Gitlab.

Note

In this configuration, we are completely satisfied with the basic base policy we created previously /policy-adv/policy_base.json, and we wish to use it as is. However, we wish to define a custom response page using an external file located on an HTTP web server (Gitlab). The external reference file contains our custom response page configuration.

As a reminder, this is the base policy we created:

{
    "name": "policy_name",
    "template": { "name": "POLICY_TEMPLATE_NGINX_BASE" },
    "applicationLanguage": "utf-8",
    "enforcementMode": "blocking"
}

Steps :

  1. RDP to Jumphost and connect to GitLab (root / F5twister$)

  2. Click on the project named NGINX App Protect / reference-blocking-page

    ../../_images/gitlab-1.png

  3. Add a new file and name it blocking-custom-1.txt

    ../../_images/gitlab-2.png

  4. Paste the text below

    [
    {
        "responseContent": "<html><head><title>Custom Reject Page</title></head><body><p>This is a <strong>custom response page</strong>, it is supposed to overwrite the default page for the <strong>base NAP policy.&nbsp;</strong></p><p>This page can be <strong>modified</strong> by a <strong>dedicated</strong> team, which does not have access to the WAF policy.<br /><br /></p><p><img src=https://media.giphy.com/media/12NUbkX6p4xOO4/giphy.gif></p><br>Your support ID is: <%TS.request.ID()%><br><br><a href='javascript:history.back();'>[Go Back]</a></body></html>",
        "responseHeader": "HTTP/1.1 302 OK\\r\\nCache-Control: no-cache\\r\\nPragma: no-cache\\r\\nConnection: close",
        "responseActionType": "custom",
        "responsePageType": "default"
    }
]

  5. Click Commit Changes

  6. SSH to Docker App Protect + Docker repo VM

  7. Delete the running docker

    docker rm -f app-protect

  8. Modify the base policy created previously

    vi ./policy-adv/policy_base.json

  9. Modify the JSON as below

    {
    "name": "policy_name",
    "template": { "name": "POLICY_TEMPLATE_NGINX_BASE" },
    "applicationLanguage": "utf-8",
    "enforcementMode": "blocking",
    "responsePageReference": {
        "link": "http://10.1.20.4/nginx-app-protect/reference-blocking-page/-/raw/master/blocking-custom-1.txt"
    }
}

    Note

    You can notice the reference to the TXT file in Gitlab

  10. Run a new docker refering to this new JSON policy

    docker run -dit --name app-protect -p 80:80 -v /home/ubuntu/policy-adv/nginx.conf:/etc/nginx/nginx.conf -v /home/ubuntu/policy-adv/policy_base.json:/etc/nginx/policy/policy_base.json -v /home/ubuntu/policy-adv/policy_mongo_linux_JSON.json:/etc/nginx/policy/policy_mongo_linux_JSON.json  app-protect:tc

  11. In the Jumphost, open Chrome and connect to Arcadia NAP Docker bookmark

  12. Enter this URL with a XSS attack http://app-protect.arcadia-finance.io/?a=<script>

  13. You can see your new custom blocking page

  14. Extra lab if you have time - modify this page in Gitlab and run a new docker. The policy is modified accordingly without modifying the ./policy-adv/policy_base.json file.


Create an OWASP Top 10 policy for NAP

So far, we created basic and custom policy (per location) and used external references. Now it is time to deploy an OWASP Top 10 policy. The policy not 100% OWASP Top 10 as several attacks can’t be blocked just with a negative policy, we will cover a big part of OWASP Top 10.

Steps:

  1. SSH to the Docker App Protect + Docker repo VM

  2. In the /home/ubuntu directory, create a new folder policy_owasp_top10

    mkdir policy_owasp_top10

  3. Create a new policy file named policy_owasp_top10.json and paste the content below

    vi ./policy_owasp_top10/policy_owasp_top10.json

    {
"policy": {
    "name": "Complete_OWASP_Top_Ten",
    "description": "A generic, OWASP Top 10 protection items v1.0",
    "template": {
    "name": "POLICY_TEMPLATE_NGINX_BASE"
    },
    "enforcementMode":"blocking",
    "signature-settings":{
        "signatureStaging": false,
        "minimumAccuracyForAutoAddedSignatures": "high"
    },
    "caseInsensitive": true,
    "general": {
    "trustXff": true
    },
    "data-guard": {
    "enabled": true
    },
    "blocking-settings": {
    "violations": [
        {
        "alarm": true,
        "block": true,
        "description": "Modified NAP cookie",
        "name": "VIOL_ASM_COOKIE_MODIFIED"
        },
        {
        "alarm": true,
        "block": true,
        "description": "XML data does not comply with format settings",
        "name": "VIOL_XML_FORMAT"
        },
        {
        "name": "VIOL_FILETYPE",
        "alarm": true,
        "block": true
        }
    ],
    "evasions": [
        {
        "description": "Bad unescape",
        "enabled": true
        },
        {
        "description": "Apache whitespace",
        "enabled": true
        },
        {
        "description": "Bare byte decoding",
        "enabled": true
        },
        {
        "description": "IIS Unicode codepoints",
        "enabled": true
        },
        {
        "description": "IIS backslashes",
        "enabled": true
        },
        {
        "description": "%u decoding",
        "enabled": true
        },
        {
        "description": "Multiple decoding",
        "enabled": true,
        "maxDecodingPasses": 3
        },
        {
        "description": "Directory traversals",
        "enabled": true
        }
    ]
    },
    "xml-profiles": [
    {
        "name": "Default",
        "defenseAttributes": {
        "allowDTDs": false,
        "allowExternalReferences": false
        }
    }
    ]
}
}

    Note

    Please have a quick look on this policy. You can notice several violations are enabled in order to cover the different OWASP categories

  4. Now, create a new nginx.conf in the policy_owasp_top10 folder. Do not overwrite the existing /etc/nginx/nginx.conf file, we need it for the next labs.

    vi ./policy_owasp_top10/nginx.conf

    user nginx;

worker_processes 1;
load_module modules/ngx_http_app_protect_module.so;

error_log /var/log/nginx/error.log debug;

events {
    worker_connections  1024;
}

http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;
    sendfile        on;
    keepalive_timeout  65;

    server {
        listen       80;
        server_name  localhost;
        proxy_http_version 1.1;

        app_protect_enable on;
        app_protect_security_log_enable on;
        app_protect_policy_file "/etc/nginx/policy/policy_owasp_top10.json";
        app_protect_security_log "/etc/nginx/log-default.json" syslog:server=10.1.20.6:5144;

        location / {
            resolver 10.1.1.9;
            resolver_timeout 5s;
            client_max_body_size 0;
            default_type text/html;
            proxy_pass http://k8s.arcadia-finance.io:30274$request_uri;
        }
    }
}

    Note

    You can notice we get back to a very simple policy. This is what DevOps and DevSecOps expect when they deploy NAP. Simple policy for OWASP Top10 attacks.

  5. Last step is to run a new container (and delete the previous one) referring to these new files for OWASP Top 10 protection.

    docker rm -f app-protect
docker run -dit --name app-protect -p 80:80 -v /home/ubuntu/policy_owasp_top10/nginx.conf:/etc/nginx/nginx.conf -v /home/ubuntu/policy_owasp_top10/policy_owasp_top10.json:/etc/nginx/policy/policy_owasp_top10.json app-protect:20200316

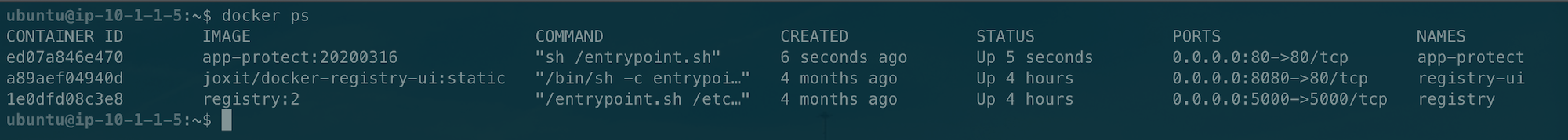

  6. Check that the app-protect:20200316 container is running

    docker ps
    ../../_images/docker-ps-owasp.png

  7. RDP to the Jumhost as user:user and click on bookmark Arcadia NAP Docker

    ../../_images/arcadia-adv.png

Video of this module (force HD 1080p in the video settings)
