Step 5 - Update the Docker image with the Threat Campaign package

In this module, we will install the package Threat Campaign into a new Docker image.

Threat Campaign is a feed from F5 Threat Intelligence team. This team is collecting 24/7 threats from internet and darknet. They use several bots and honeypotting networks in order to know in advance what the hackers (humans or robots) will target and how.

Unlike signatures, Threat Campaign provides with ruleset. A signature uses patterns and keywords like ' or or 1=1. Threat Campaign uses rules that match perfectly an attack detected by our Threat Intelligence team.

Note

The App Protect installation does not come with a built-in Threat campaigns package like Attack Signatures. Threat campaigns Updates are released periodically whenever new campaigns and vectors are discovered, so you might want to update your Threat campaigns from time to time. You can upgrade the Threat campaigns by updating the package any time after installing App Protect. We recommend you upgrade to the latest Threat campaigns version right after installing App Protect.

For instance, if we notice a hacker managed to enter into our Struts2 system, we will do forensics and analyse the packet that used the breach. Then, this team creates the rule for this request. A rule can contains all the HTTP L7 payload (headers, cookies, payload …)

Note

Unlike signatures that can generate False Positives due to low accuracy patterns, Threat Campaign is very accurate and reduces drastically the False Positives.

Note

NAP provides with high accuracy Signatures + Threat Campaign ruleset. The best of bread to reduce FP.

Threat Campaign package is available with the app-protect-signatures-7.repo repository. It is provided with the NAP subscription.

In order to install this package, we need to update our Dockerfile. I created another Dockerfile named Dockerfile-sig-tc

#For CentOS 7
FROM centos:7.4.1708

# Download certificate and key from the customer portal (https://cs.nginx.com)
# and copy to the build context
COPY nginx-repo.crt nginx-repo.key /etc/ssl/nginx/

# Install prerequisite packages
RUN yum -y install wget ca-certificates epel-release

# Add NGINX Plus repo to yum
RUN wget -P /etc/yum.repos.d https://cs.nginx.com/static/files/nginx-plus-7.repo
RUN wget -P /etc/yum.repos.d https://cs.nginx.com/static/files/app-protect-signatures-7.repo

# Install NGINX App Protect
RUN yum -y install app-protect app-protect-attack-signatures app-protect-threat-campaigns\
   && yum clean all \
   && rm -rf /var/cache/yum \
   && rm -rf /etc/ssl/nginx

# Forward request logs to Docker log collector
#RUN ln -sf /dev/stdout /var/log/nginx/access.log \
#    && ln -sf /dev/stderr /var/log/nginx/error.log

# Copy configuration files
COPY nginx.conf log-default.json /etc/nginx/
COPY entrypoint.sh  ./

CMD ["sh", "/entrypoint.sh"]

Note

You may notice one more package versus the previous Dockerfile in Step 4. I added the package installation app-protect-threat-campaigns

Follow the steps below to build the new Docker image:

  1. SSH to Docker App Protect + Docker repo VM

  2. Run the command docker build -t app-protect:tc -f Dockerfile-sig-tc . <– Be careful, there is a “.” (dot) at the end of the command

  3. Wait until you see the message: Successfully tagged app-protect:tc

Note

Please take time to understand what we ran. You may notice 2 changes. We ran the build with a new Dockerfile Dockerfile-sig-tc and with a new tag tc. You can choose another tag like tcdate where date is the date of today. We don’t know yet the date of the TC package ruleset.

Destroy the previous running NAP container and run a new one based on the new image (tag tc)

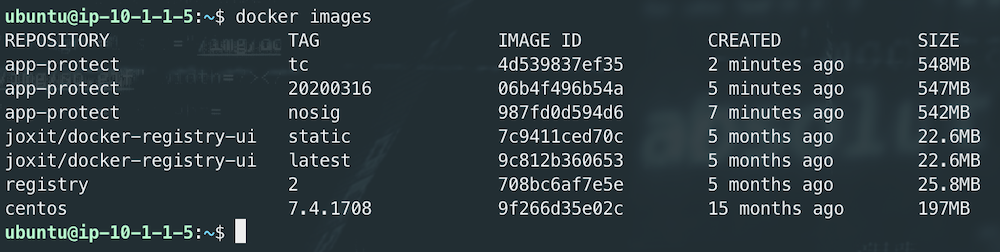

  1. Check if the new app-protect Docker image is available locally by running docker images. You will notice the new image with a tag of tc.

    ../../_images/docker_images2.png

  1. Destroy the existing and running NAP container docker rm -f app-protect

  2. Run a new container with this image docker run -dit --name app-protect -p 80:80 -v /home/ubuntu/nginx.conf:/etc/nginx/nginx.conf app-protect:tc

    Warning

    If you decided to change the tag tc by another tag, change your command line accordingly

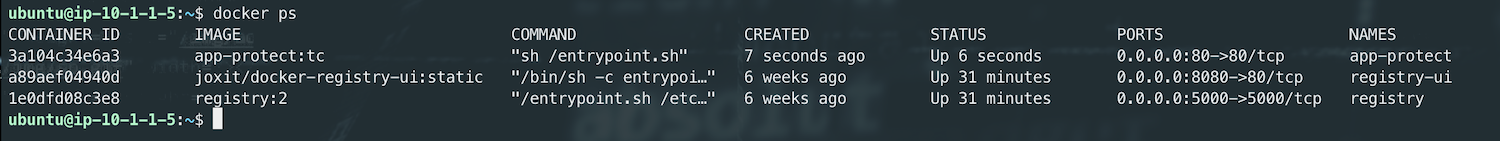

  3. Check that the Docker container is running docker ps

    ../../_images/docker_run2.png

  1. Check the Threat Campaign ruleset date included in the new Docker container docker exec -it app-protect cat /var/log/nginx/error.log

    Note

    You can notice in one line of log, you get the Signature date and the Threat Campaign date.

2020/07/01 17:03:14 [notice] 12#12: APP_PROTECT { "event": "configuration_load_success", "software_version": "3.74.0", "attack_signatures_package":{"revision_datetime":"2020-06-28T15:30:59Z","version":"2020.06.28"},"completed_successfully":true,"threat_campaigns_package":{"revision_datetime":"2020-06-25T19:13:36Z","version":"2020.06.25"}}

Simulate a Threat Campaign attack

  1. RDP to the Jumphost (user / user)

  2. Open Postman and select the collection NAP - Threat Campaign

  3. Run 2 calls.

    1. Strust2 Jakarta attack

    2. Drupal attack

    3. The NMAP attack is now detected as a Bot. We added Bot Protection in NAP v2.1. Do not run it.

  4. In the next module, we will check the logs in Kibana.

Note

Congrats, you are running a new version of NAP with the latest Threat Campaign package and ruleset.

Video of this module (force HD 1080p in the video settings)
